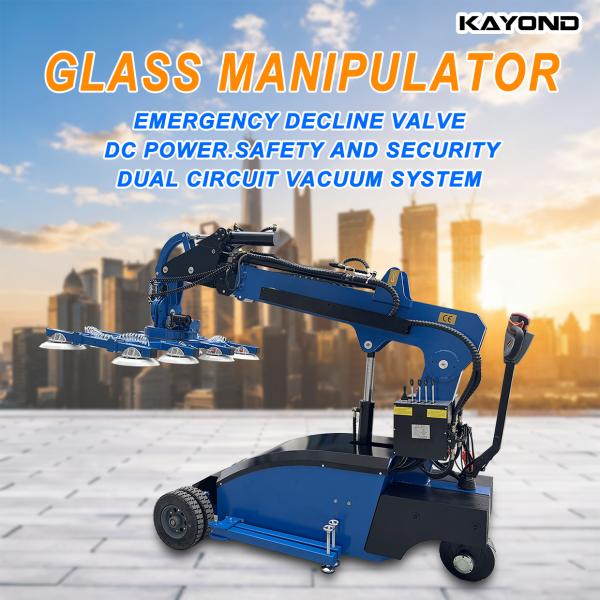

CE Certified 800kg Load Electric Glass Vacuum Lifting Device for Engineering Use
Our glass lifter robot delivers a smart and efficient solution for heavy material handling in construction, manufacturing, and installation projects. Capable of lifting and moving glass panels, stone slabs, steel plates, and wooden boards, it significantly reduces manual labor and improves workplace safety. Equipped with advanced safety features including a vacuum alarm, emergency stop, automatic braking, charging protection, counterweight, and stable support legs, it ensures reliable and secure performance. Also known as a vacuum glass handling robot, glazing lifter, electric suction cup lifter, or robotic glass installation tool, it is the perfect choice for modern material handling needs.
advantage:
1.Front Axle driven, rough terrain wheels can walk on bad situation road.
2.Strong power, steady lifting and lowering
3.Dual Vacuum System. One for normal operation and the other as spare system
Click here to get latest price
If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks
| Model | / | GL600/800 |
| Driving mode | / | Front Axle Drive |
| Max.Load | kg | 600 /800 |

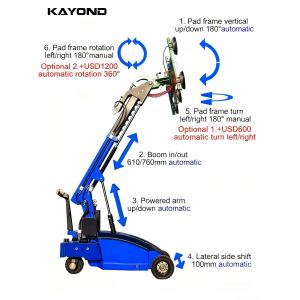

| Rotating | ° | Manual 360° (Automatic type for optional) |
| Turn to side | ° | Manual 90° (Automatic type for optional) |
| Lifting Height | mm | 3700 /4500/ 5000 |
| Manipulation | / | Walkie Type |
| Power | / | Tractive-type Free Maintence Battery |
| Controling type | / | Stepless adjusting speed |
| Battery | V/Ah | 2*12/120 |
| Charger | V/A | 24/18 |
| Climbing gradient | % | 15 |
| Braking type | / | Electromagnetic braking |
| Driving Motor | V/W | 24/2200 / 24/2500 |
| Lifting Motor | V/W | 24/2200 |
| Packing Size | mm | 2780*990*1750 / 3180*1100*1780 |
| Packing Weight | kg | 1850 / 2080 |
| Front Wheel Size | mm | Φ466*195 (Pneumatic Tires) |
| Front Wheel Qty | pcs | 2 ( 2+2 Dual wheel optional) |
| Rear Wheel Size | mm | Solid Φ400*100 ( Pneumatic tires for optional) |
| Rear Wheel Qty | pcs | 2 |
| Pads Size | mm | Φ300 |
| Pads Qty | pcs | 6/8 |
